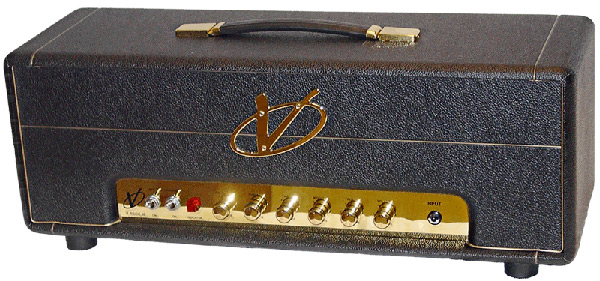

V-Reck Single Lead Series

"Inspiried by the legendary Trainwreck™ amps made by Ken Fischer in Colonia, New Jersey. These single-channel amps were revered for their touch sensitivity allowing players to go from shimmering cleans to raging distortion simply by using the guitar's volume knob!

Original model Trainwreck™ amps sell on the used market for between $20,000 - $30,000 a piece! The Voodoo V-Reck™ was designed to capture the magic essence and greatness of the original Trainwrecks, at a price that everyone can afford."

DESCRIPTION

  • Hand crafted, built & assembled in the USA
  • 100% hand wired (no printed circuit boards)
  • Mercury Magnetics Custom Transformers
  • 1-Channel Design
  • Preamp Tubes: 3=12AX7's
  • Power Tube: EL34 Svetlana (updates to other tubes also available)

FRONT PANEL - MASTER VOLUME

  • Gain (preamp)
  • Master Volume (post phase inverter)
  • EQ - Bass, Mids, Treble & Presence
  • 1/4" Heavy Duty Input Jack
  • Indicator Light
  • Heavy Duty Carling Power & Standby Switches

REAR PANEL

  • Speaker Outputs: 2 - Heavy Duty 1/4" Jacks
  • 4, 8 & 16 Ohm Impedance Selector
  • Mains & HT Fuse Holders
  • Detachable 3-Prong Power Cord (IEC connector)
  • Voltage Selector - 110V, 120V, 220V & 230V

ADDITIONAL SPECS / FEATURES

  • All components and parts are chosen for tone, feel and long term reliability
  • Customer Mercury Magnetics Transformers
  • V50/50 8FT IEC Power Cable
  • Teflon wire - Aerospace grade
  • Aluminum Chassis with welded corners
  • Rugged Handle
  • Warranty

DIMENSIONS

  • L = 8.25"
  • W = 26"
  • H = 9"
  • H = w/Feet = 9.75"
Model Price
V-Reck 50 W 2,290,- EUR
Voodoo Amps
Tolex Options
Grill Cloth Options

Speaker Options:
